AISI 4130 LONG SWEEP ELBOW MANUFACTURER, SUPPLIER IN MUMBAI, INDIA

ANSI B16.9 AISI 4130 Long Sweep Elbow, 4130 Long Sweep Elbow, AISI 4130 Seamless Long Sweep Elbow, AISI 4130 Long Sweep Elbow Manufacturer, AISI 4130 Alloy Steel Long Sweep Elbow, Alloy Steel 4130 Long Sweep Elbow, 4130 Long Sweep Fittings, AISI 4130 Long Sweep Elbow Supplier in Mumbai, India.

Rajendra Industrial Corporation is an internationally acclaimed manufacturer and supplier of AISI 4130 Long Sweep Elbows. The AISI 4130 Long Sweep Elbows are widely used in the piping applications across several industries. AISI 4130 Elbow is a key part for changing the direction of fluid flow in a piping system. It is used to link two pipes with the same or different thickness, and to transform the pipe to some 45 degrees or 90 degrees’ point. The AISI 4130 Long Sweep Elbows that we provide at Rajendra Industrial Corp are globally appreciated because of the immense strength they offer. These Long Sweep Elbows are usually used in the piping systems that require high pressure resistance. The AISI 4130 long sweep elbows that we produce at Rajendra Industrial Corp are readily Machin-able.

The AISI 4130 Long Sweep Elbows are versatile with good atmospheric corrosion resistance and reasonable strength. They are generally used in the piping systems where high strength is required. The AISI 4140 Long Sweep Elbows are used in gravity-fed systems with low pressure. they are widely used in Off-Shore Oil Drilling Companies and Sea Water Equipment manufacturing. They are also used in the manufacturing of Pharmaceutical Equipment and Chemical Equipment. Heat Exchangers are also manufactured using the AISI 4130 Long Sweep Elbows. They are used in the, Cement Manifolds, Mud Manifolds and Choke & Kill manifolds including Control Panel. Some of the other applications of AISI 4130 Long Sweep Elbows include Well Head Equipment and Christmas Tree Equipment manufacturing.

AISI 4130 Long Sweep Elbow Exporter, AISI 4130 Alloy Steel Welded Long Sweep Elbows, AISI 4130 Long Sweep 90 Deg Elbow, High Pressure 4130 Seamless Long Sweep Elbow, AISI 4130 Long Sweep Elbows Exporter, Heavy Wall 4130 Seamless Long Sweep Elbow, AISI 4130 Buttweld Long Sweep Elbow Dealer, ASME B16.9 AISI 4130 Long Sweep Elbow, 4130 Seamless Long Sweep Elbows, High Quality AISI 4130 Long Sweep Elbow Manufacturer in Mumbai, india.

AISI 4130 Long Sweep Elbow Specification

Dimensions: ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size: 1", 2", 3", 4", 5", 6", 8", 3.5" OD, 4.5" OD, 5.5" OD and as per client design
Type: Seamless
Thickness: Schedule 80, XS, 120, 160, XXS, higher thickness as per client requirement.
Pressure: 7.5K, 10K, 15K, 22.5K and more as per client drawing and requirement.
Delivery Condition: Annealed, Normalized, Stress Relieved, Quenched & Tempered.
Product Specification Level (PSL): PSL 1, PSL 2, PSL 3.
Supplementary Requirement: NACE MR0175 / MR0103 ISO 3183 / NACE TM0284 YS - MIN 85,000, UTS - 1,10,000 WITHSTANDING 15,000 PRESSURE.

AISI 4130 Long Sweep Elbow Equivalent Grades

STANDARD UNS WERKSTOFF NR. AFNOR EN JIS BS GOST
AISI 4130 G41300 1.7218 - 25CrMo4 JIS G4105 BS 970 -

Chemical Composition of AISI 4130 Long Sweep Elbow

Grade Ni C Mo Mn Si Fe Cu S P Cr
AISI 4130 0.50 max 0.28-0.33 0.15-0.25 0.40-0.60 0.15-0.35 97.3-98.22 - 0.025 MAX 0.035 MAX 0.80-1.10

Mechanical Properties of AISI 4130 Long Sweep Elbow

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
0.28 2580 460 MPa 560 MPa 20 %

AISI 4130 Long Sweep Elbow


Export Countries

Angola, Portugal, Coimbatore, Sharjah, Mumbai, Texas, Venezuela, Canada, Bahrain, Kuwait, Brazil, UAE, Egypt, Poland, Argentina, Brazil, Turkey, United Kingdom, Singapore, Chennai, India, Chile, America, Jordan, Abu Dhabi, Russia, Himachal Pradesh, Africa, Thailand, Ecuador, Costa Rica, Indonesia, Malaysia, Spain, Houston, KSA, United States of America, Saudi Arabia, United Arab Emirates, Italy, Dammam, USA, UK, Mexico, Pune, Riyadh, Qatar, Dubai, Oman, Gujarat etc..

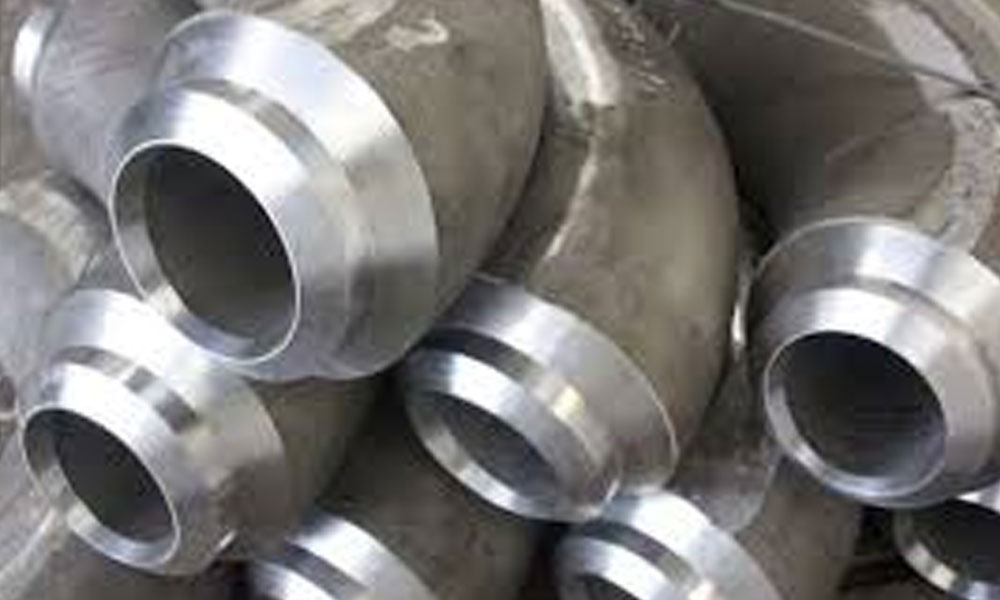

Price Of AISI 4130 Long Sweep Elbow

ANSI B16.9 4130 Long Sweep Elbow Price

Application
