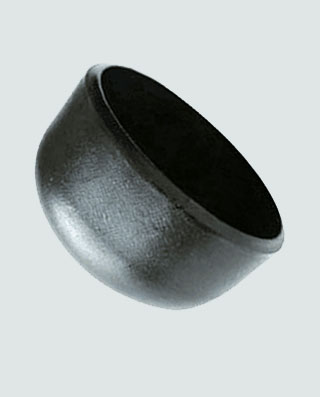

AISI 4130 PIPE CAP MANUFACTURER, SUPPLIER IN MUMBAI, INDIA

Alloy Steel 4130 End Cap, Heavy Wall 4130 Seamless Pipe Cap, High Pressure 4130 Seamless Pipe Cap, AISI 4130 Pipe Caps Manufacturer, Chrome Moly 4130 Pipe Cap, AISI 4130 ANSI B16.9 Pipe Cap, AISI/SAE 4130 Pipe End Cap, AISI 4130 Alloy Steel Pipe End Caps, Alloy Steel 4130 Pipe Caps, AISI 4130 End Caps Supplier in Mumbai, India.

Rajendra Industrial Corp is AISI 4130 Pipe Caps' premier manufacturer and supplier. The AISI 4130 Pipe Caps are made from iron alloy which also includes additions of chromium and molybdenum which give these Pipe Caps excellent strength. The AISI 4130 Pipe Caps are also extremely corrosion resistant even under extreme conditions. Rajendra Industrial Corp has a fully equipped manufacturing facility that contains all the machinery and equipment required to manufacture AISI Pipe Caps in precise sizes and dimensions. These Pipe Caps are used in piping systems which require resistance to high stress. The AISI 4130 Pipe Caps have a relatively low carbon content of approximately 0.03%. The lower carbon content makes them excellent from the applications of fusion weldability. The AISI Pipe caps act as protective device and are designed to protect pipe ends of various shapes.

The AISI 4130 Pipe Caps Are Pipe Caps made of low alloy material. They are commonly used in high pressure applications. They cannot be job-hardened by treatment. The AISI 4130 Pipe Caps are weldable using all traditional methods of welding. AISI Pipe Caps Applications are used in diverse industries. The AISI 4130 Pipe Caps are also used in the manufacturing of Choke & Kill manifolds including Control Panel, Mud Manifolds, Cement Manifolds, and Mud / Gas Separators. Some of the other applications of AISI 4130 Pipe Caps are found in Onshore and offshore drilling industries, Oil & Gas industries and Pipe Line end manifolds, Pipe Line end terminations.

ASME B16.9 AISI 4130 Pipe Caps, AISI 4130 End Caps Exporter, SAE 4130 Pipe End Cap, AISI 4130 Seamless Pipe Cap, AISI 4130 Buttweld Pipe Caps Dealer, 25crmo4 Pipe Caps, 4130 Steel Seamless End Cap, AISI 4130 Pipe End Cap Exporter, Chromoly 4130 End Pipe Cap, High Quality AISI 4130 End Cap Manufacturer in Mumbai, india.

AISI 4130 Pipe Cap Specification

Dimensions: ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size: 1", 2", 3", 4", 5", 6", 8", 3.5" OD, 4.5" OD, 5.5" OD and as per client design
Type: Seamless
Thickness: Schedule 80, XS, 120, 160, XXS, higher thickness as per client requirement.
Pressure: 7.5K, 10K, 15K, 22.5K and more as per client drawing and requirement.
Delivery Condition: Annealed, Normalized, Stress Relieved, Quenched & Tempered.
Product Specification Level (PSL): PSL 1, PSL 2, PSL 3.
Supplementary Requirement: NACE MR0175 / MR0103 ISO 3183 / NACE TM0284 YS - MIN 85,000, UTS - 1,10,000 WITHSTANDING 15,000 PRESSURE.

AISI 4130 Pipe Cap Equivalent Grades

STANDARD UNS WERKSTOFF NR. AFNOR EN JIS BS GOST
AISI 4130 G41300 1.7218 - 25CrMo4 JIS G4105 BS 970 -

Chemical Composition of AISI 4130 Pipe Cap

Grade Ni C Mo Mn Si Fe Cu S P Cr
AISI 4130 0.50 max 0.28-0.33 0.15-0.25 0.40-0.60 0.15-0.35 97.3-98.22 - 0.025 MAX 0.035 MAX 0.80-1.10

Mechanical Properties of AISI 4130 Pipe Cap

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
0.28 2580 460 MPa 560 MPa 20 %

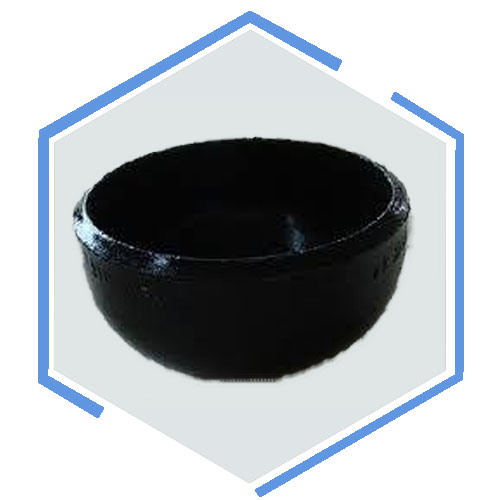

AISI 4130 Pipe Cap


Export Countries

Spain, Qatar, Jordan, Kuwait, UAE, Mexico, Malaysia, USA, United Arab Emirates, Egypt, Ecuador, Russia, Oman, Venezuela, UK, Saudi Arabia, Poland, Sharjah, Singapore, Riyadh, Abu Dhabi, Portugal, Argentina, Thailand, United Kingdom, Mumbai, Brazil, Africa, Pune, Costa Rica, Angola, Dubai, Chennai, Italy, Turkey, Dammam, India, Houston, Chile, KSA, Indonesia, Coimbatore, United States of America, Bahrain, Gujarat, Texas, Brazil, Himachal Pradesh, America, Canada etc..

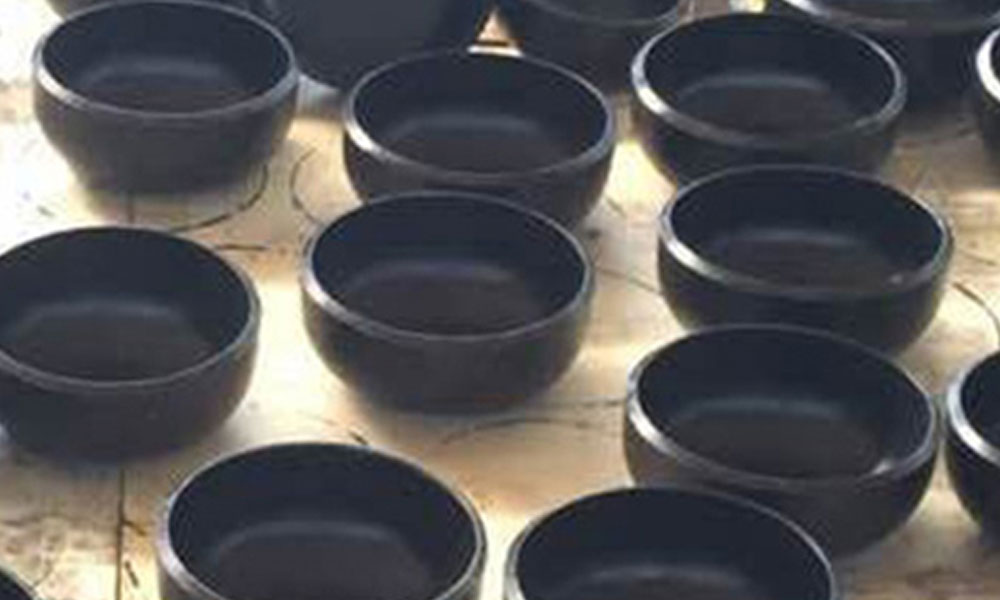

Price Of AISI 4130 Pipe Cap

AISI 4130 Pipe Cap Price

Application
